Soft Bridge vs. Absorber Diode: How to Choose the Right Power Supply Solution for Your Application?

In the field of power electronics, while both soft bridge rectifiers and absorber diodes are related to diode technology, they possess distinct characteristics and application scenarios. Today, we will provide a detailed analysis of these two components to help you make better choices and utilize them effectively.

I. Technical Principle Comparison

Soft Bridge Rectifiers

Core Technology:
By doping with precious metals and optimizing manufacturing processes, the reverse recovery curve of the diode is improved, reducing harmonic oscillations during turn-off.

Key Features:
1.Smooth Turn-off: Optimizes the softness factor (tb/ta), reducing differential-mode conducted interference below 500kHz.

2.Simplified EMI Design: Lowers the stray inductance of the AC input line, reducing the need for peripheral components such as X capacitors and common-mode chokes, thereby saving BOM costs.

3.Direct Drop-in Replacement: Can directly replace standard rectifier bridges, making it fully compatible with AC-DC power supply designs.

1.Application Scenarios for Soft Bridge Rectifiers:


2.Application Scenarios for Absorber Diodes:


3.Selection Decision Guide:

Requirement Dimensions	Recommended Solutions	Core Advantages
EMI Conducted Emission Optimization	Soft Bridge Rectifiers	Reduces low-frequency interference, eliminating the cost of EMI suppression components
High-Frequency Radiation Suppression	Absorber Diodes	Improves radiation in the 30MHz–60MHz band, enhancing EMI test margins
Light-Load Efficiency Enhancement	Absorber Diodes	Reduces no-load power consumption by over 10mW, improving light-load efficiency
BOM Cost Control	Soft Bridge Rectifiers	Simplifies filter circuits, reducing the component count

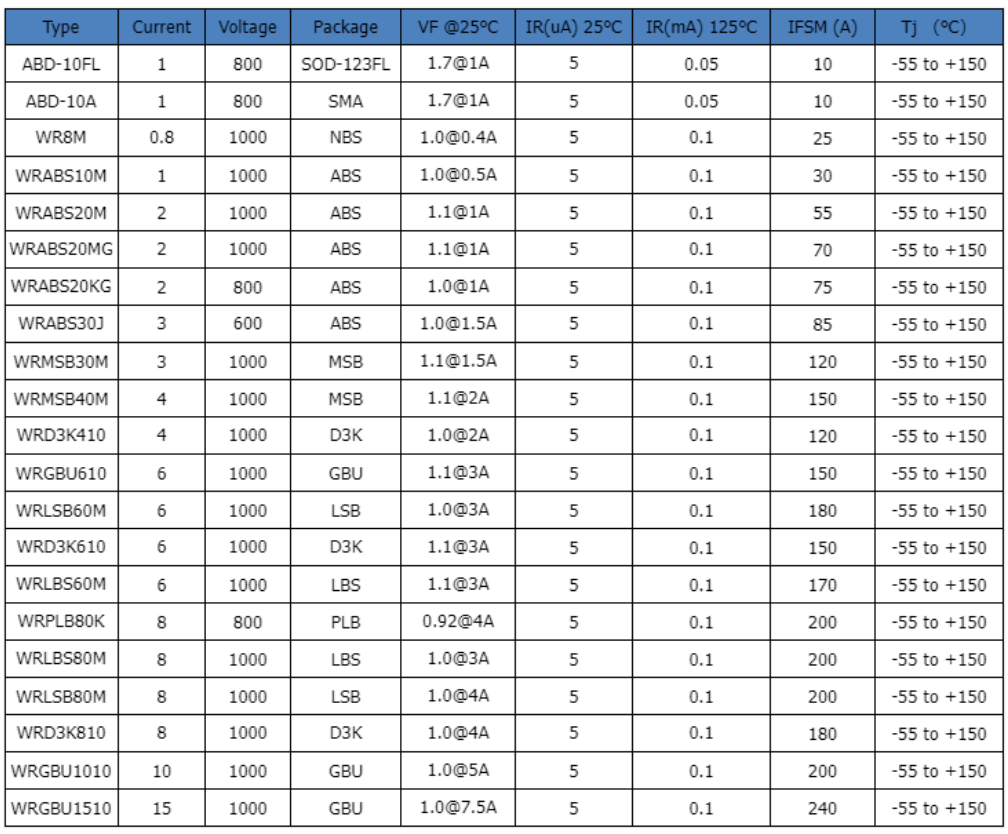

4.Partial Product Portfolio:
