Home /  News /  Company News

World Industrial: The Reliable Choice for Large-Screen TV Power Supplies

Post time: 2026.08.12 Source: Shenzhen World Industrial Co.,Ltd Views: 105

With the rapid adoption of 85-inch and larger TVs, the efficiency and stability of power modules have become critical factors in brand competition. Leveraging its innovative technology layout and diversified product portfolio, World Industrial provides high-performance component support for TV power supply designs, empowering customers to create more energy-efficient and reliable end products!

I. Trends from Teardowns: Core Design Elements of Large-Screen TV Power Supplies

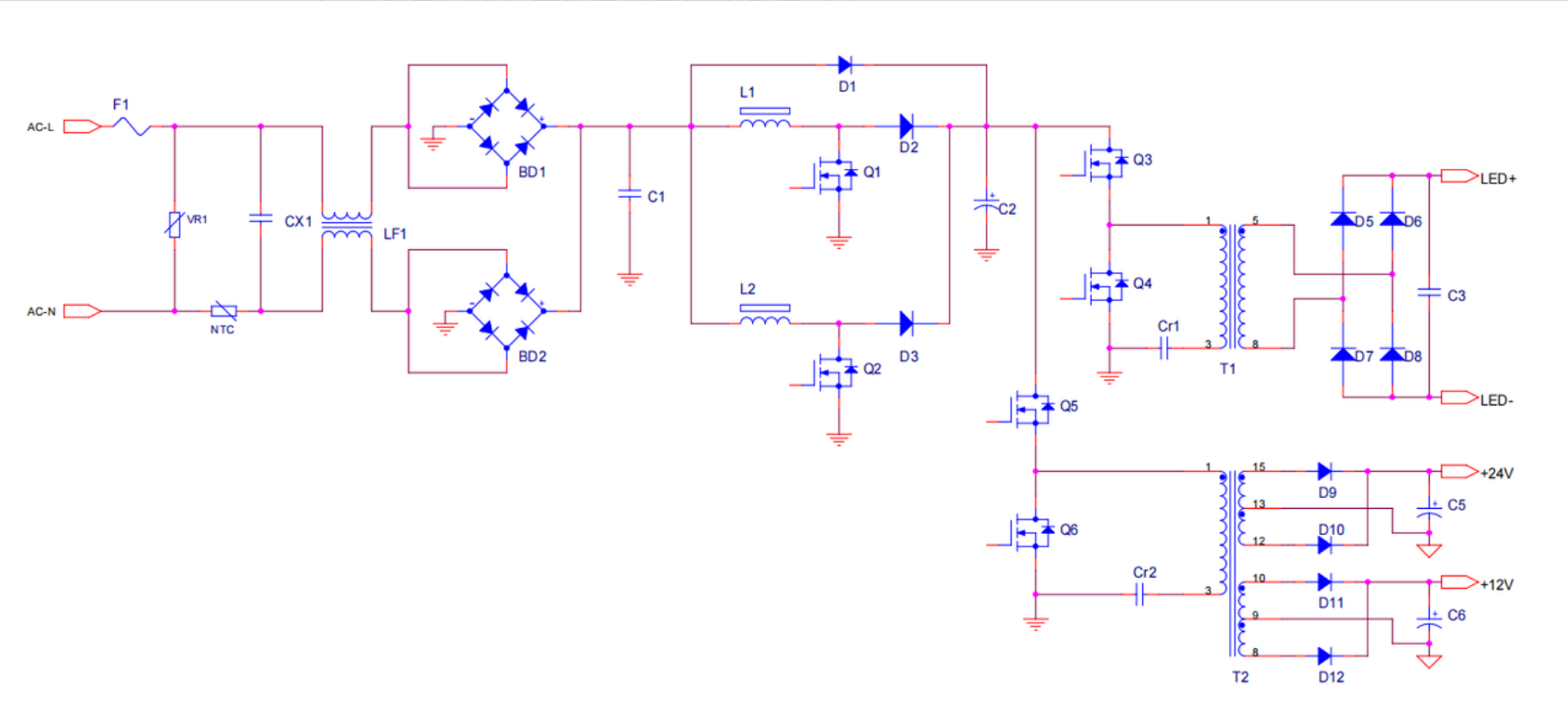

Schematic Block Diagram

Taking the power supply of a mainstream 85-inch TV as an example, its architecture adopts an interleaved PFC + dual-channel LLC topology. The core components include:

1. High-Reliability Rectifier Bridges

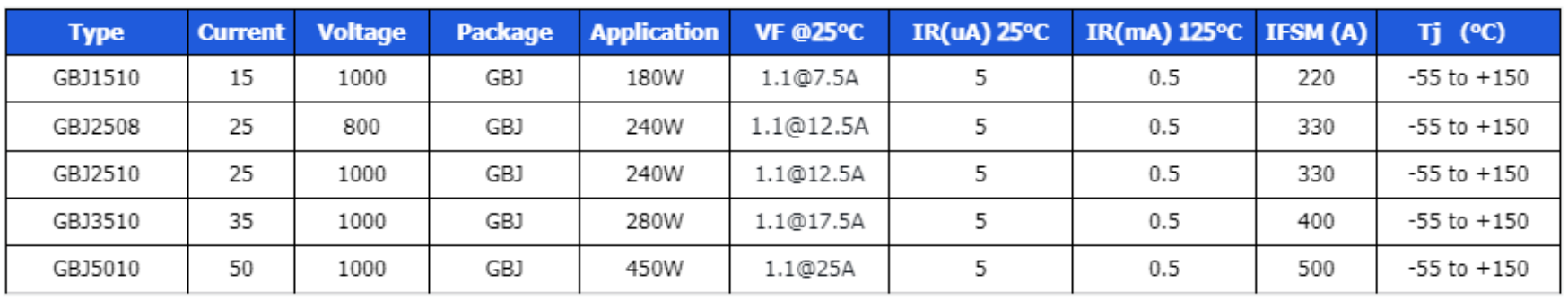

World Industrial's GBJ series rectifier bridges cover current ratings from 15A to 50A and voltage ratings from 600V to 1000V. Featuring low conduction losses and high surge current capability, they are perfectly suited for high-power PFC circuits, ensuring stable and efficient AC input.

2. High-Efficiency PFC & LLC MOSFETs

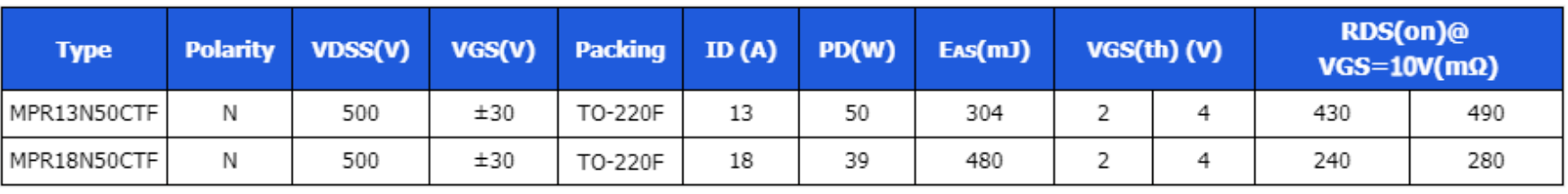

PFC Stage Recommendation: World Industrial's MPR18N50CTF (18A/500V TO-220F) features a low gate charge design and supports high-frequency switching. It is optimized for interleaved PFC architectures to enhance power conversion efficiency.
LLC Stage Recommendation: To meet the demands of mainboards and LED drivers, World Industrial's MPR13N50CTF (13A/500V) and MPR18N50CTF (18A/500V) planar MOSFETs feature ultra-low on-resistance (Rds(on)). They are ideal for half-bridge LLC topologies, delivering the required power for large-screen TV power supplies.

3. Rectification Devices

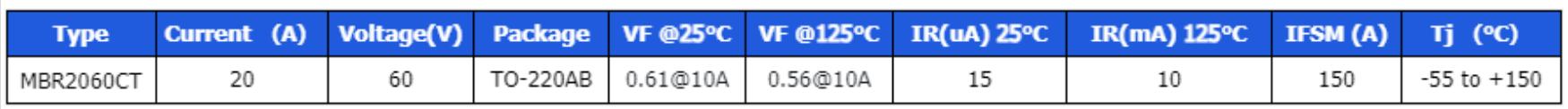

Schottky Diodes: World Industrial's MBR2060CT (20A/60V TO-220F) offers an industry-leading low forward voltage drop. It is optimized for 12V/24V low-voltage outputs to minimize energy loss.

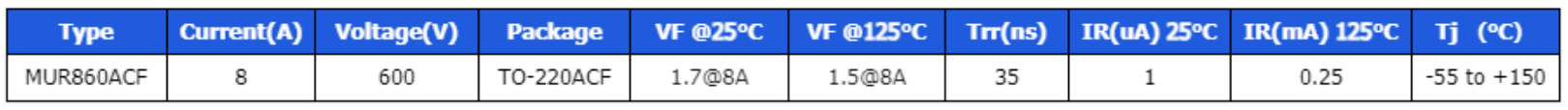

Fast Recovery Diodes: World Industrial's MUR860ACF (8A/600V) features a short reverse recovery time. It is suitable for high-voltage rectification in LED drivers, ensuring stability across a wide 80-280V output range.

Partial Product Portfolio:








II. Unique Advantages of World Industrial

1.Performance Benchmarking Against International Standards: Our product parameters are fully compatible with industry-leading brands, offering superior cost-effectiveness.


2.Full-Chain Coverage: From input rectification to output rectification, we provide one-stop component selection services.

III. Industry Insights: Efficient Power Supplies Driving the Future

Driven by technologies such as 4K/8K Ultra HD and Mini LED backlighting, TV power supply design continues to evolve towards higher efficiency and greater compactness. Through innovative components and customized solutions, World Industrial empowers customers to achieve:

✅ Lower overall standby power consumption
✅ Higher power conversion efficiency
✅ More compact power module designs




Prev: World Industrial | Safeguarding Authentic Products, Building a Strong Quality Defense Line Next: Soft Bridge vs. Absorber Diode: How to Choose the Right Power Supply Solution for Your Application?
