Ensuring Stable Operation of LED Lighting Systems: PLED Open Circuit Protectors Safeguard High-Efficiency Lighting

Post time: 2026.08.07 Source: Source:Shenzhen World Industrial Co.,Ltd Views: 165

With the rapid adoption of LED lighting technology, system stability and operational lifespan have become the core priorities for users. Particularly in series-connected LED circuits, the failure of a single LED can cause the entire lighting system to fail, resulting in exorbitant maintenance costs and potential safety hazards. World Industrial's PLED Open Circuit Protector overcomes these industry pain points through innovative technology, serving as the "invisible guardian" for LED lighting systems. Below is an in-depth analysis of its technical advantages and typical applications.

I. Core Technology: Instantaneous Bypass to Ensure Uninterrupted System Operation

World Industrial's PLED Open Circuit Protector features ultra-fast switching characteristics. When a single LED in a series-connected string fails open, the protector triggers a low-impedance bypass channel within microseconds, routing the current around the faulty LED to ensure continuous current flow. This seamless transition does not affect the brightness or operating status of the remaining LEDs, perfectly resolving the "single point of failure" challenge inherent in traditional series circuits.

Key Features:

Wide Voltage Compatibility: Adapts to various LED driver topologies, including constant current sources and PWM dimming systems.
Ultra-Fast Response: Delivers precise and rapid bypass protection, ensuring seamless system transition.
Energy-Efficient Design: Exhibits near-zero power consumption during normal operation and activates only upon fault detection, balancing high efficiency with environmental sustainability.
Safe & Reliable: Provides stable protection without compromising overall brightness and lighting performance.
Surface-Mount Package: Housed in a compact DO-214AA (SMB) package, optimizing PCB footprint.

Internal Schematic Diagram:

II. Target Applications: Comprehensive Coverage for a Reliable Illuminated Future

1. Smart Cities & Infrastructure: In LED street lighting and tunnel illumination, World Industrial's PLED protectors significantly reduce maintenance frequency. Even if a single LED fails, the overall lighting system continues to operate seamlessly, ensuring nighttime traffic safety and preserving the city's aesthetic image.

2. Premium Architectural & Stage Lighting: In architectural facade and stage lighting systems, uniformity and visual appeal are paramount. World Industrial's PLED open circuit protectors guarantee the integrity of the overall lighting effect, ensuring that an individual LED open failure will not cause large-scale blackouts.

3. Automotive Lighting: Headlights, taillights, and interior ambient lighting demand exceptionally high reliability. World Industrial's PLED protectors operate stably in harsh environments, such as extreme temperatures and severe vibrations, thereby enhancing driving safety.

4. Industrial & High-Bay Lighting: Maintenance for lighting systems in factories, warehouses, and high-bay fixtures is highly labor-intensive and costly. World Industrial's PLED protectors significantly extend the maintenance cycle of LED systems, effectively reducing replacement costs and maintenance risks.

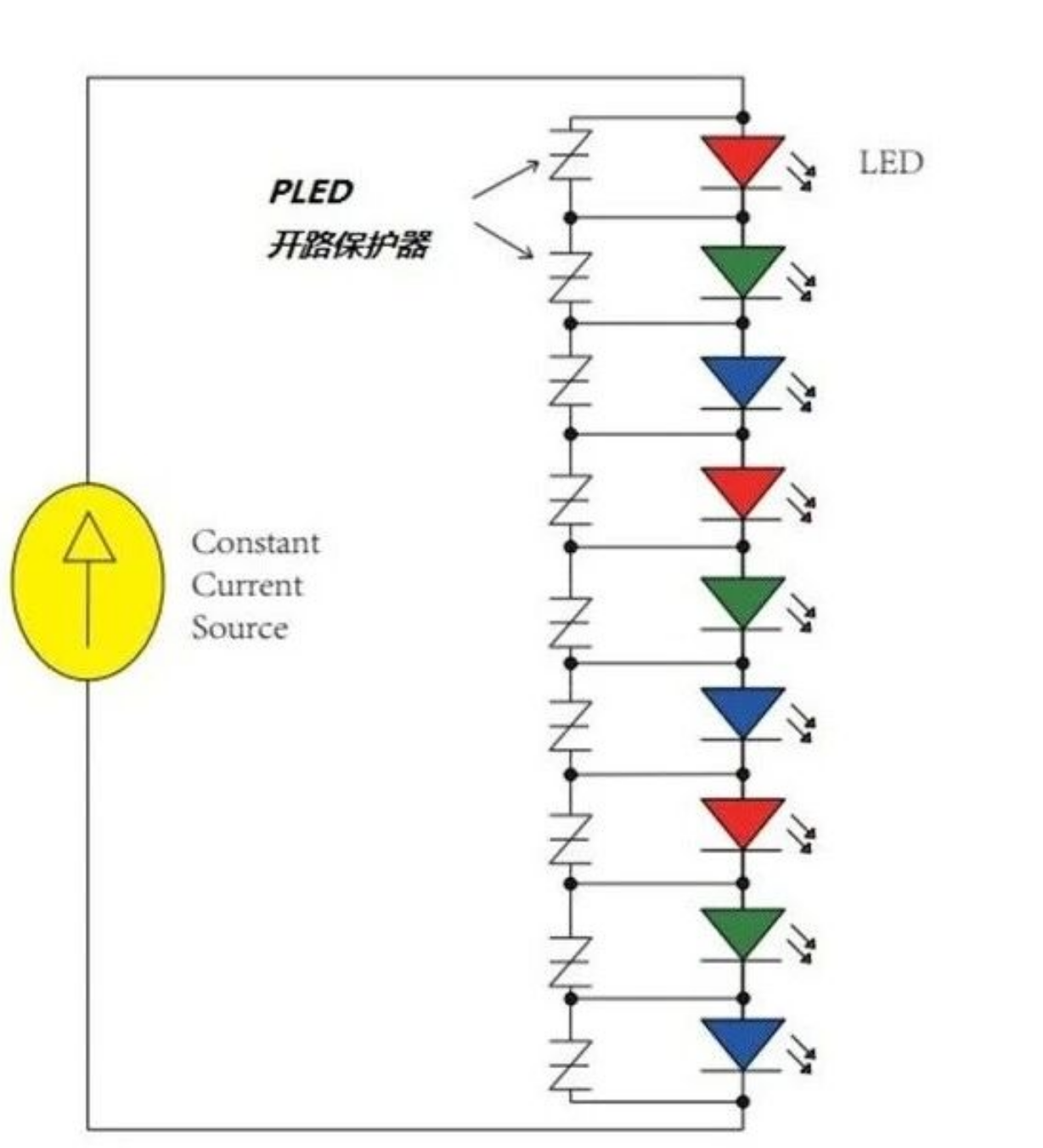

Application Schematic Diagram:

III. Selection Guide: Precise Matching to Maximize Value

1.Voltage Matching:
Select the appropriate protector model based on the total forward voltage of the LED string.

2.Current Capability:
Ensure the protector's maximum bypass current rating exceeds the system's operating current.

3.Environmental Adaptability:
For outdoor or automotive applications, prioritize selecting wide-temperature models and strictly verify their Ingress Protection (IP) ratings against dust and water.
