As the global energy transition accelerates, the surging demand for high-density equipment in industrial automation, 5G base stations, and AI servers presents two major challenges for power supply design: energy efficiency upgrades and thermal management optimization. Meanwhile, with increasingly stringent carbon emission reduction policies worldwide, the market urgently requires power devices that balance low power loss with high reliability.
The NEWP® ES8HSP is introduced to meet these demands: Featuring a 500V voltage rating and an ultra-low forward voltage drop (VF) of 1.65V @ 8A as its core advantages, it directly addresses industry pain points. This device helps power systems achieve efficiency exceeding 95%, injecting vital "chip" power into the green energy transition!
2.Voltage Rating (VB): 500V
3.Package: Surface-Mount TO-277 Package
4.Low Forward Voltage Drop: VF < 0.72V @ 1A, 125°C
5.Low Leakage Current: 10µA @ 125°C. The minimized reverse leakage current (IR) significantly reduces reverse power dissipation.
I. Key Specifications
1.Reverse Recovery Time (Trr): 35ns2.Voltage Rating (VB): 500V
3.Package: Surface-Mount TO-277 Package
4.Low Forward Voltage Drop: VF < 0.72V @ 1A, 125°C
5.Low Leakage Current: 10µA @ 125°C. The minimized reverse leakage current (IR) significantly reduces reverse power dissipation.

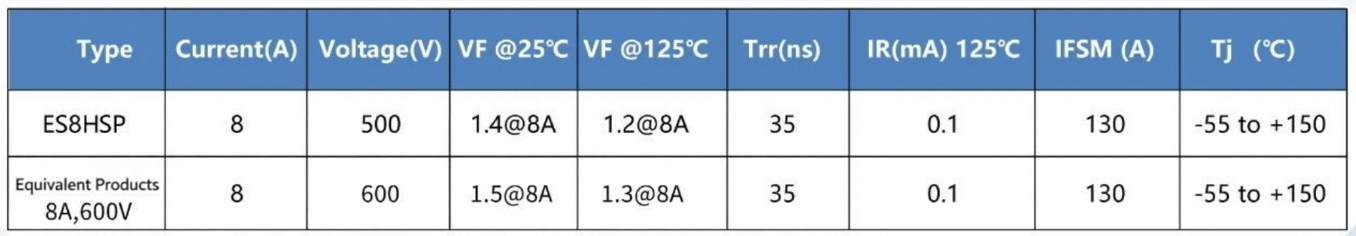

II. Test Data Comparison
Dynamic Data Comparison:
Test Conditions: Input 120VAC/60Hz, Output 42V/2.5A, Ambient Temperature 25°C

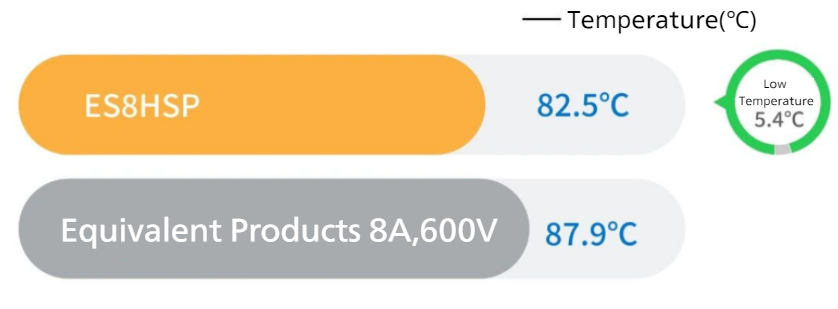

The data demonstrates that compared to comparable 8A/600V products on the market, World Industrial's ES8HSP features a 0.1V lower forward voltage drop (VF) and operates at a temperature 5.4°C lower.
III. Application Schematics
Application Schematics

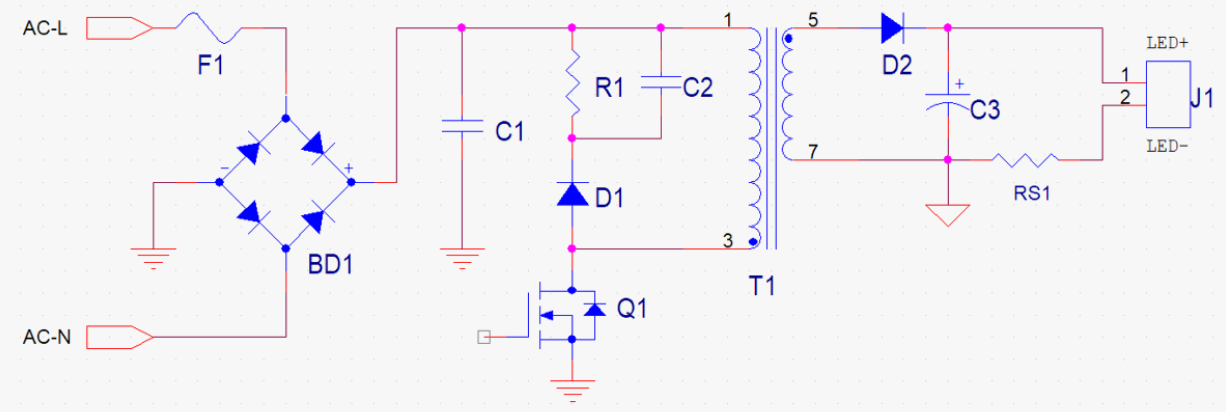

LED Power Supply Flyback Topology Schematic

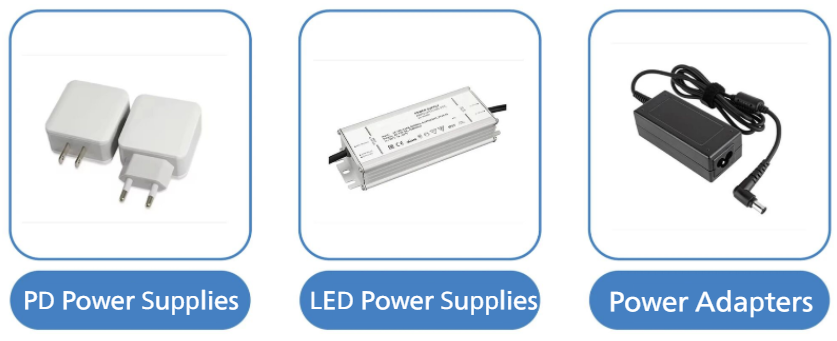

IV. Target Applications & Company Profile
