In environments characterized by frequent grid fluctuations and lightning strikes, traditional surge protection solutions often suffer from high clamping voltages and a high susceptibility to component degradation, posing severe risks to home appliances and industrial equipment. To address this, World Industrial has innovatively introduced a "MOV+TSS Low Clamping Voltage Solution." By leveraging the synergistic effect of Thyristor Surge Suppressors (TSS) and Metal Oxide Varistors (MOV), this advanced solution significantly reduces the clamping voltage, thereby substantially enhancing overall equipment reliability.
I. Directly Addressing Pain Points with Precision Solutions
1.Excessive Clamping Voltage:
A clamping voltage exceeding 800V from primary surge protection can cause irreversible damage to downstream components!
2.Grid Fluctuations:
Unstable voltage in rural and industrial environments significantly shortens the lifespan of MOVs!
3.Cost Dilemma:
High-voltage MOVs exhibit drastically elevated clamping voltages, conflicting with the voltage tolerance requirements of downstream devices!

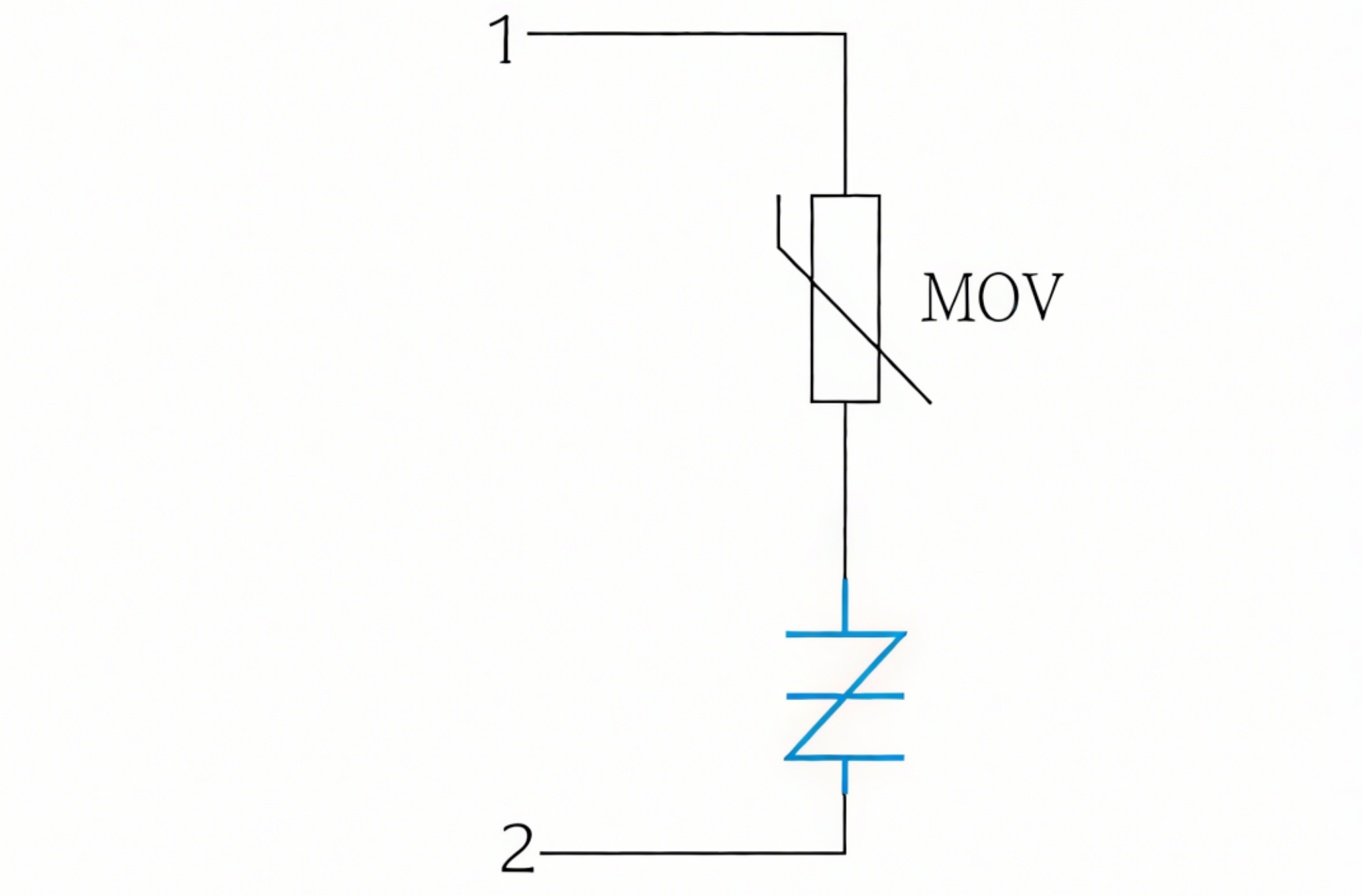

II. Innovative Solution for Superior Performance

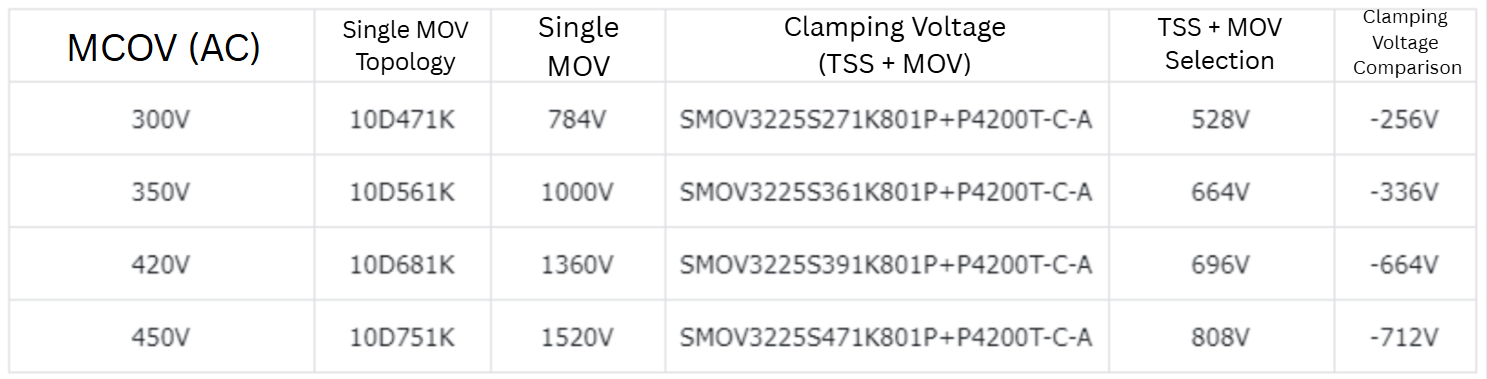

Compared to single-MOV solutions, the clamping voltage is reduced by over 200V. For example, under a 2kV test, the combination of SMOV3225S271K801P and P4200T-C-A achieves a clamping voltage of only 528V, a reduction of 256V compared to the traditional 10D471K.
2.Enhanced Voltage Tolerance:
The Maximum Continuous Operating Voltage (MCOV) of the surge protection circuit is increased by 50V to 130V, allowing it to adapt to more severe grid environments.
3.Single-Stage Replacement for Multi-Stage Protection:
Eliminates the need for decoupling circuits and secondary protection, resulting in lower overall costs!
4.Compact Package Options:
Our integrated package products are available in 3225 and 4032 sizes. Available MCOV options include 48V, 78V, 330V, and 390V, while Vdrm options include 30V, 260V, and 350V.
IV. Standard Compliance and Safety

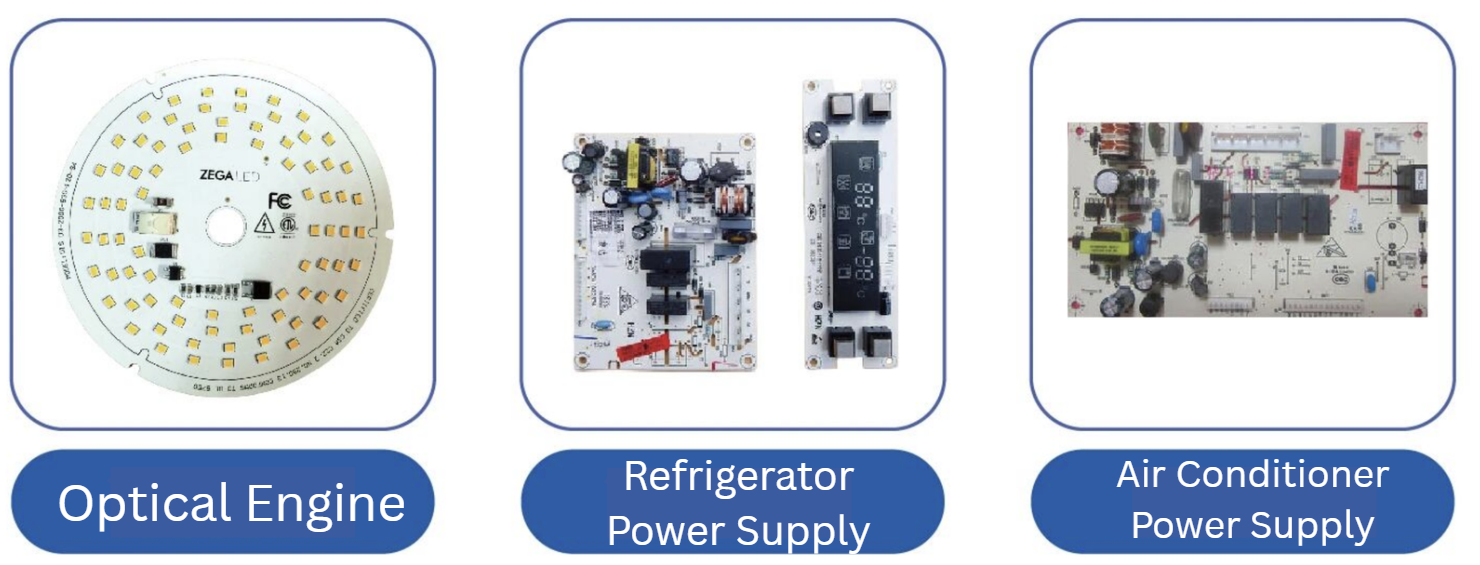

V. Target Applications
Through an innovative voltage-sharing design, the World Industrial MOV+TSS solution resolves the pain points of high clamping voltage and insufficient voltage tolerance in traditional surge protection circuits. While ensuring strict regulatory compliance, it significantly enhances equipment reliability and reduces overall system costs. This makes it particularly well-suited for home appliances and industrial sectors characterized by complex grid environments and stringent cost sensitivity. Looking ahead, as smart devices demand greater power supply stability, this solution is poised to become the mainstream choice for overvoltage protection.
