Home /  News /  Company News

High-Temperature Alert! Is Your Electronic Equipment "Overheating"? No Worries, High Junction Temperature Schottky Diodes Are Here to Protect It!

Post time: 2026.08.05 Source: Source:Shenzhen World Industrial Co.,Ltd Views: 93

Recently, Guangdong has been experiencing continuous extreme heat under the control of the subtropical high. Still struggling with component selection for high-temperature environments? Worried that system overheating might lead to performance degradation and shortened operational lifespan? It is time for an upgrade! World Industrial is proud to introduce our High Junction Temperature Schottky Diode series.

I. Key Features:

1.High Junction Temperature (175°C): Capable of withstanding extreme high-temperature challenges.

2.Low Leakage Current: Effectively reduces power dissipation and minimizes the risk of thermal failure.

3.Low Forward Voltage (VF): Enhances power conversion efficiency.

4.Superior Reliability: Ensures stable and continuous operation.



II. Data Comparison:

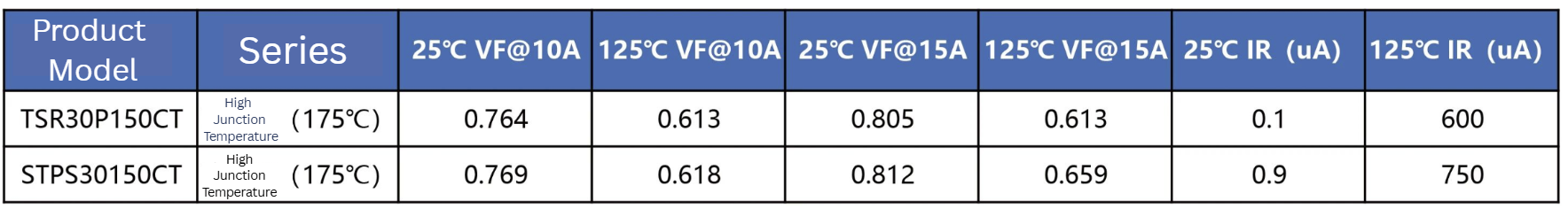

Static Test Data Comparison:

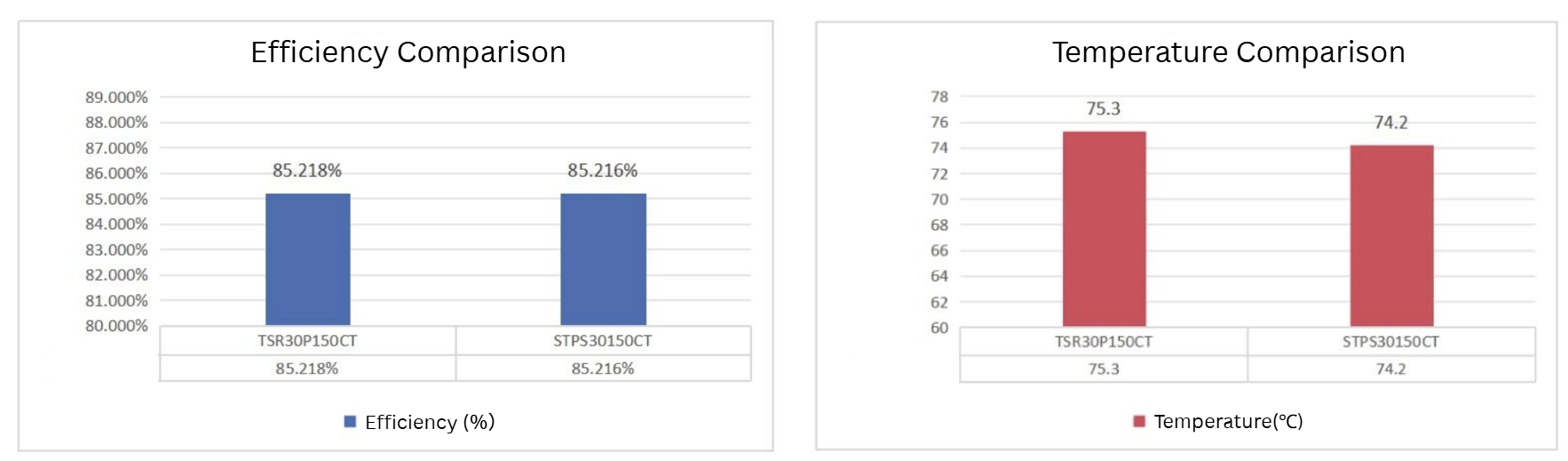

Dynamic Test Data Comparison:
Input 220VAC, Output 12V/29A, Dual-Switch Forward Topology with Cooling Fan.


The data demonstrates that World Industrial's TSR30P150CT delivers performance comparable to a leading international brand, making it an ideal drop-in replacement.

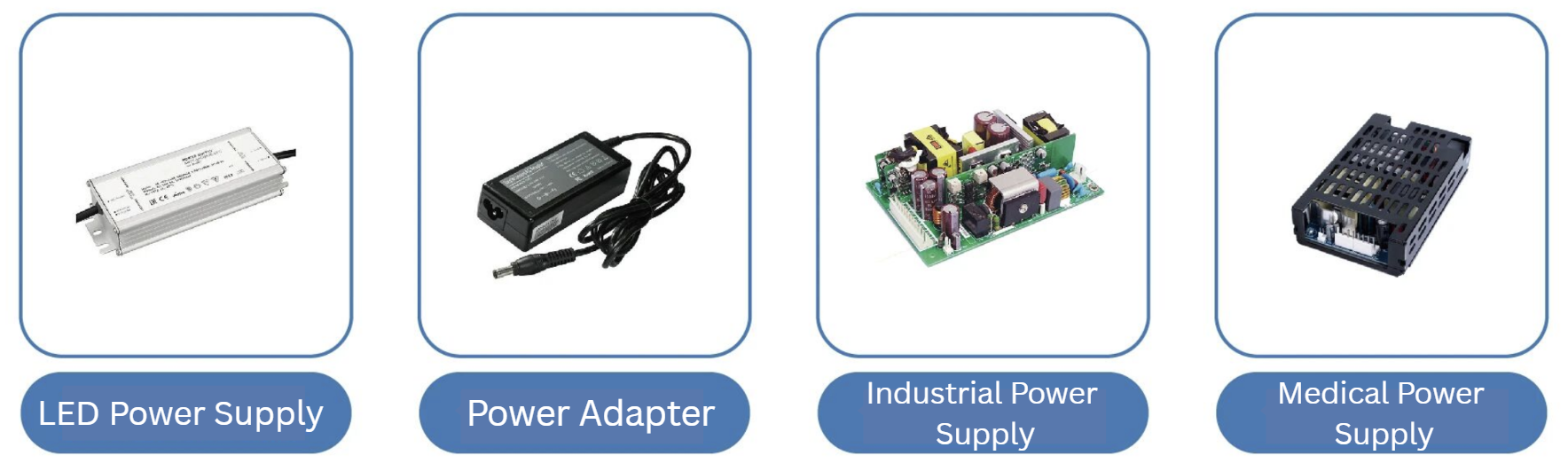

III. Target Applications:

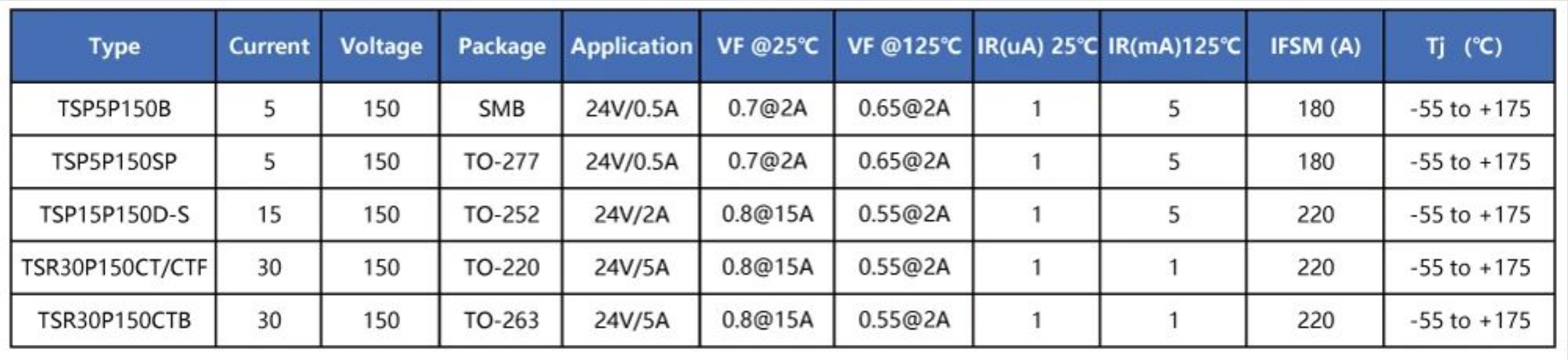

IV. Partial Product Portfolio:
